DURAGO
BD80113

第三方数据DURAGO : BD80113

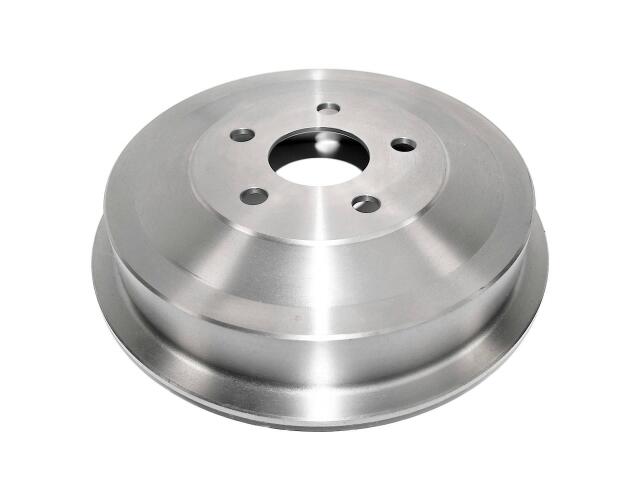

Drum
DURAGO : BD80113

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.8
Bolt Hole Quantity: 5
Brake Surface Width (IN): 1.99
Brake Surface Width (MM): 50.6
Center Hole Diameter (IN): 2.26
Center Hole Diameter (MM): 57.5
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.08
Maximum Brake Diameter (Discard) (MM): 230.6
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.5
Outer Cooling Fins: No
Outside Diameter (IN): 10.67
Outside Diameter (MM): 271
Overall Height (IN): 2.74
Overall Height (MM): 69.6
Rust Resistant Coating: No

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	AX80113:*
OE	BD80113:*

品牌	号码
OE	80113G:*
OE	AX8011*

品牌	号码
OE	12615*
