DURAGO
BD80104

第三方数据DURAGO : BD80104

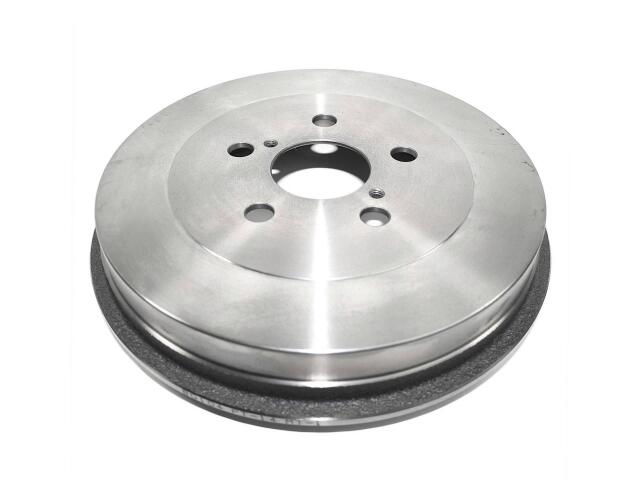

Drum
DURAGO : BD80104

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.8
Bolt Hole Quantity: 5
Brake Surface Width (IN): 1.81
Brake Surface Width (MM): 46
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55.1
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.04
Maximum Brake Diameter (Discard) (MM): 229.6
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.6
Outer Cooling Fins: No
Outside Diameter (IN): 10.71
Outside Diameter (MM): 272
Overall Height (IN): 2.2
Overall Height (MM): 56
Rust Resistant Coating: No

适用车型

TOYOTA (1)

PONTIAC (1)

OE号码

品牌	号码
OE	AX80104:*

品牌	号码
OE	AX8010*

品牌	号码
OE	12602*
