DURAGO
BD80092

第三方数据DURAGO : BD80092

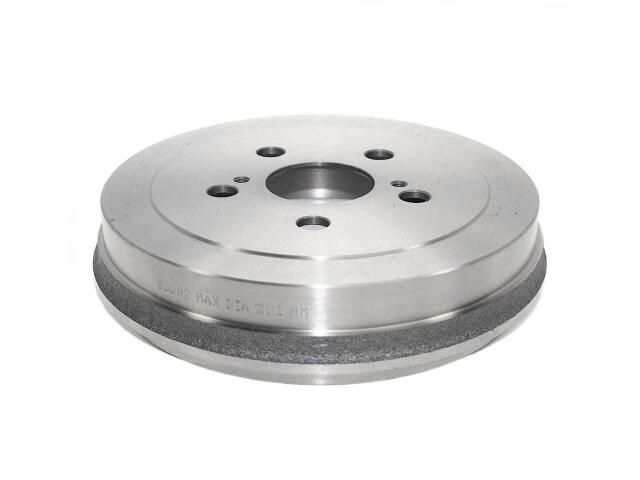

Drum
DURAGO : BD80092

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.8
Bolt Hole Quantity: 5
Brake Surface Width (IN): 1.62
Brake Surface Width (MM): 41.1
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 7.91
Maximum Brake Diameter (Discard) (MM): 201
Nominal Drum Diameter (IN): 7.86
Nominal Drum Diameter (MM): 199.7
Outer Cooling Fins: No
Outside Diameter (IN): 9.17
Outside Diameter (MM): 233
Overall Height (IN): 2.05
Overall Height (MM): 52
Rust Resistant Coating: No

适用车型

TOYOTA (2)

OE号码

品牌	号码
OE	AX80092:*

品牌	号码
OE	6026*

品牌	号码
OE	AX8009*
