DURAGO
BD80002

第三方数据DURAGO : BD80002

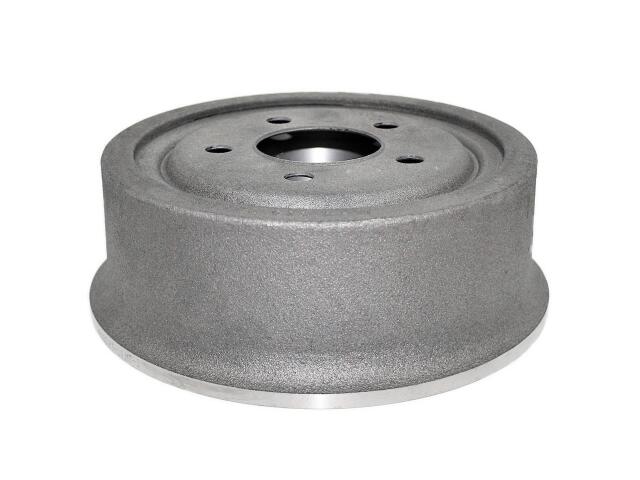

Drum
DURAGO : BD80002

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Bolt Hole Diameter (IN): 0.62
Bolt Hole Diameter (MM): 15.7
Bolt Hole Quantity: 5
Brake Surface Width (IN): 3.08
Brake Surface Width (MM): 78.2
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Composite
Material: Cast Iron / Steel Top
Maximum Brake Diameter (Discard) (IN): 9.06
Maximum Brake Diameter (Discard) (MM): 230
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.6
Outer Cooling Fins: No
Outside Diameter (IN): 10.79
Outside Diameter (MM): 274
Overall Height (IN): 3.58
Overall Height (MM): 91
Rust Resistant Coating: No

适用车型

JEEP (1)

OE号码

品牌	号码
OE	AX8000*

品牌	号码
OE	12503*
