第三方数据DURAGO : BD3558

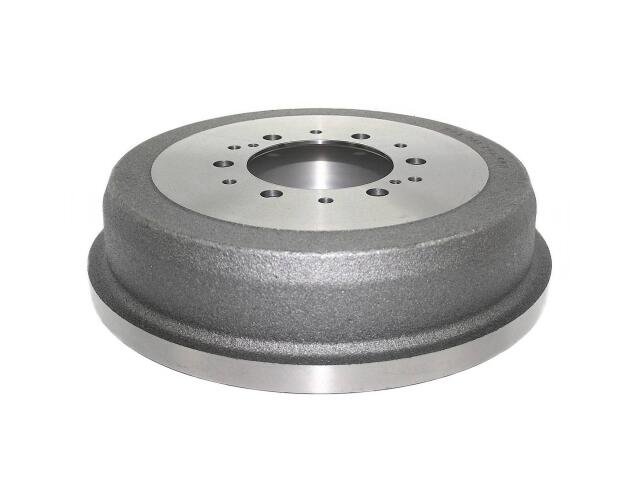

Drum
DURAGO : BD3558

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Bolt Hole Diameter (IN): 0.57
Bolt Hole Diameter (MM): 14.5
Bolt Hole Quantity: 6
Brake Surface Width (IN): 2.59
Brake Surface Width (MM): 65.9
Center Hole Diameter (IN): 4.17
Center Hole Diameter (MM): 105.8
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 11.69
Maximum Brake Diameter (Discard) (MM): 297
Nominal Drum Diameter (IN): 11.61
Nominal Drum Diameter (MM): 295
Outer Cooling Fins: No
Outside Diameter (IN): 13.5
Outside Diameter (MM): 343
Overall Height (IN): 3.3
Overall Height (MM): 83.7
Rust Resistant Coating: No

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	AX355*

品牌	号码
OE	6085*
