DURAGO
BD35102

第三方数据DURAGO : BD35102

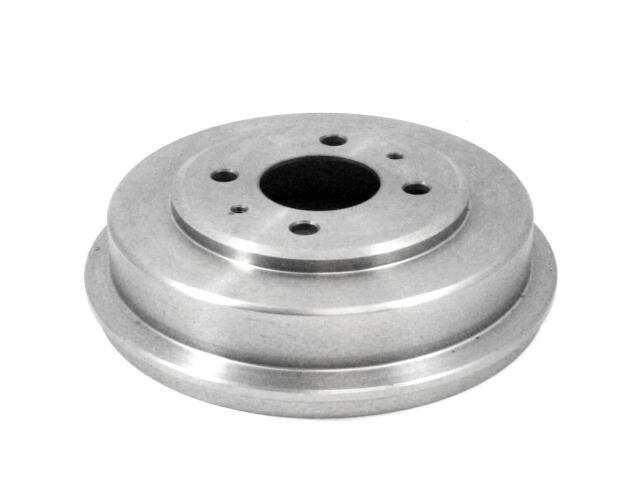

Drum
DURAGO : BD35102

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.51
Bolt Hole Diameter (MM): 12.9
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.73
Brake Surface Width (MM): 44
Center Hole Diameter (IN): 2.46
Center Hole Diameter (MM): 62.5
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 8.08
Maximum Brake Diameter (Discard) (MM): 205.2
Nominal Drum Diameter (IN): 8
Nominal Drum Diameter (MM): 203.2
Outer Cooling Fins: No
Outside Diameter (IN): 9.81
Outside Diameter (MM): 249.1
Overall Height (IN): 2.52
Overall Height (MM): 64
Rust Resistant Coating: No

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	35102G:*
OE	35102*

品牌	号码
OE	BD35102:*
OE	12614*

品牌	号码
OE	AX3510*
