BD35085

第三方数据DURAGO : BD35085

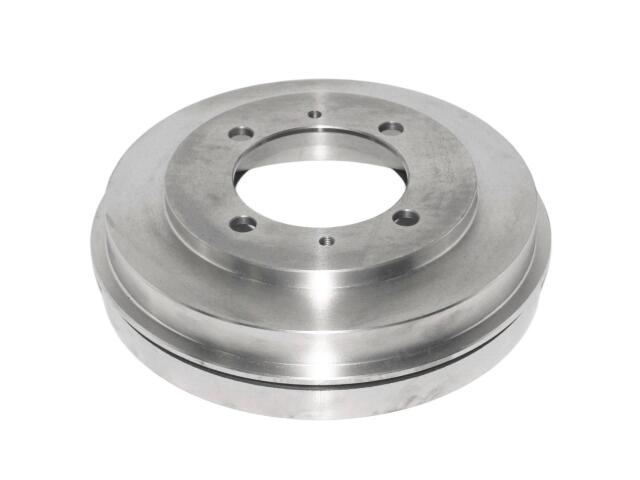

Drum
DURAGO : BD35085

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Bolt Hole Diameter (IN): 0.5
Bolt Hole Diameter (MM): 12.8
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.65
Brake Surface Width (MM): 42
Center Hole Diameter (IN): 3.55
Center Hole Diameter (MM): 90.1
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 8.07
Maximum Brake Diameter (Discard) (MM): 205
Nominal Drum Diameter (IN): 7.99
Nominal Drum Diameter (MM): 202.95
Outer Cooling Fins: No
Outside Diameter (IN): 9.57
Outside Diameter (MM): 243
Overall Height (IN): 2.36
Overall Height (MM): 60
Rust Resistant Coating: No

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	35085G:*
OE	AX35085:*

品牌	号码
OE	12612*

品牌	号码
OE	AX3508*
