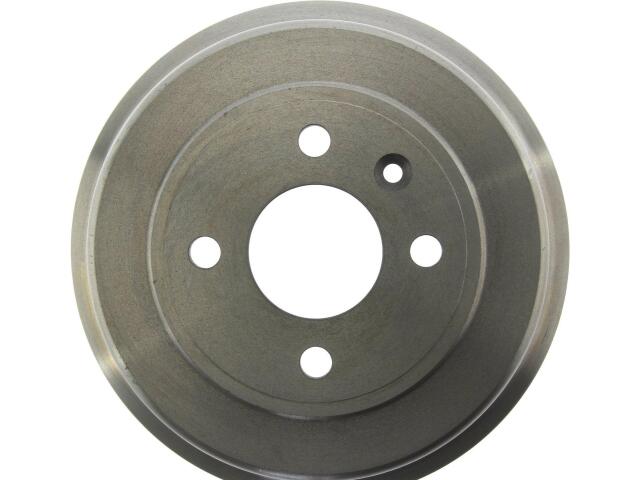

Drum
CENTRIC : 12399033

Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Bolt Hole Quantity: 4
Friction Surface Width (IN): 1.701
Friction Surface Width (MM): 43.200
Height (IN): 2.433
Height (MM): 61.800
Hub Hole / Register (IN): 2.362
Hub Hole / Register (MM): 60.000
Maximum Brake Diameter (Discard) (IN): 7.953
Maximum Brake Diameter (Discard) (MM): 202.000
Misc Holes: 1
Mounting Hole Diameter (IN): 0.551
Mounting Hole Diameter (MM): 14.000
Mounting Type: Floating
Nominal Drum Diameter (IN): 7.874
Nominal Drum Diameter (MM): 200.000
Outer Cooling Fins: No
Outside Diameter (IN): 9.606
Outside Diameter (MM): 244.000

适用车型

CHEVROLET (1)

参考号

厂商	号码
AUTOZONE/DURALAST CONNECTORS	123.9903*

厂商	号码
DFC	3659201*

厂商	号码
QUALIS	2703*

OE号码

品牌	号码
OE	123.9903*

品牌	号码
OEM PART NUMBER	9685351*
