CENTRIC
12399032

第三方数据CENTRIC : 12399032

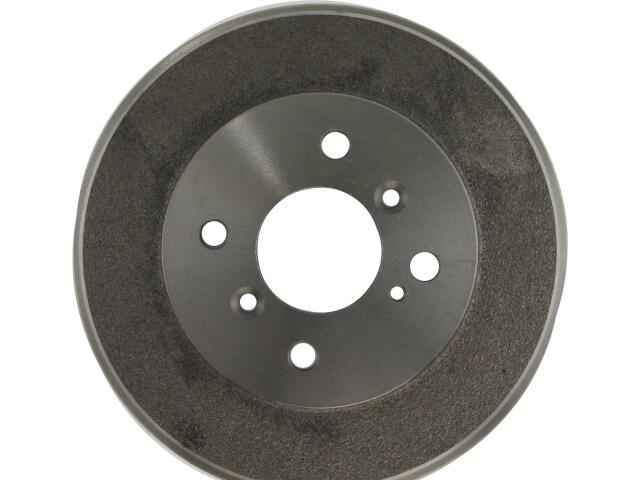

Drum
CENTRIC : 12399032

Bolt Circle Diameter (IN): 4.250
Bolt Circle Diameter (MM): 107.950
Bolt Hole Quantity: 4
Friction Surface Width (IN): 1.941
Friction Surface Width (MM): 49.300
Height (IN): 2.764
Height (MM): 70.200
Hub Hole / Register (IN): 2.496
Hub Hole / Register (MM): 63.400
Maximum Brake Diameter (Discard) (IN): 9.060
Maximum Brake Diameter (Discard) (MM): 230.100
Misc Holes: 3
Mounting Hole Diameter (IN): 0.547
Mounting Hole Diameter (MM): 13.900
Mounting Type: Floating
Nominal Drum Diameter (IN): 8.976
Nominal Drum Diameter (MM): 228.000
Outer Cooling Fins: No
Outside Diameter (IN): 10.748
Outside Diameter (MM): 273.000

适用车型

FORD (1)

参考号

厂商	号码
AUTOZONE/DURALAST CONNECTORS	123.9903*
CASTING NUMBERS	CN151126*

厂商	号码
DFC	3659202*

厂商	号码
QUALIS	2703*

OE号码

品牌	号码
OEM PART NUMBER	CN151126A*

品牌	号码
OEM PART NUMBER	MCN151126A*
