CENTRIC
12399031

第三方数据CENTRIC : 12399031

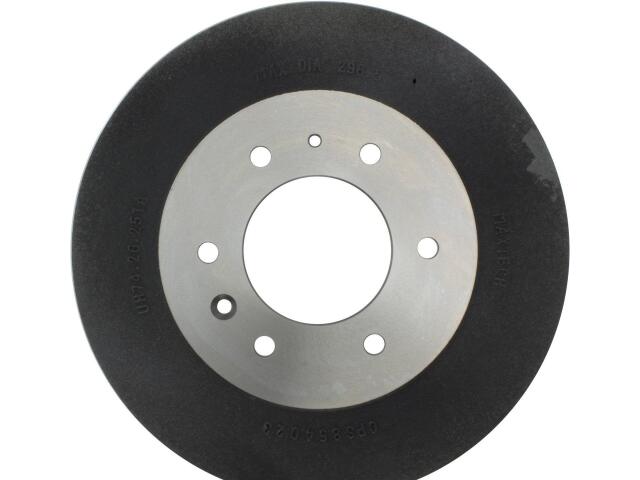

Drum
CENTRIC : 12399031

Bolt Circle Diameter (IN): 5.500
Bolt Circle Diameter (MM): 139.700
Bolt Hole Quantity: 6
Friction Surface Width (IN): 2.606
Friction Surface Width (MM): 66.200
Height (IN): 3.173
Height (MM): 80.600
Hub Hole / Register (IN): 3.665
Hub Hole / Register (MM): 93.100
Maximum Brake Diameter (Discard) (IN): 11.670
Maximum Brake Diameter (Discard) (MM): 296.500
Misc Holes: 2
Mounting Hole Diameter (IN): 0.492
Mounting Hole Diameter (MM): 12.500
Mounting Type: Floating
Nominal Drum Diameter (IN): 11.720
Nominal Drum Diameter (MM): 297.700
Outer Cooling Fins: No
Outside Diameter (IN): 13.661
Outside Diameter (MM): 347.000

适用车型

FORD (1)

参考号

厂商	号码
AUTOZONE/DURALAST CONNECTORS	123.9903*
FREMAX BRAKE ROTORS & DRUMS	BD791*

厂商	号码
QUALIS	2703*

厂商	号码
TEXTAR	9403540*

OE号码

品牌	号码
OE	123.9903*
OEM PART NUMBER	MXM341126B*

品牌	号码
OEM PART NUMBER	UH7426251*
OEM PART NUMBER	UH7426251*

品牌	号码
OEM PART NUMBER	XM341126B*
