第三方数据CENTRIC : 12399030

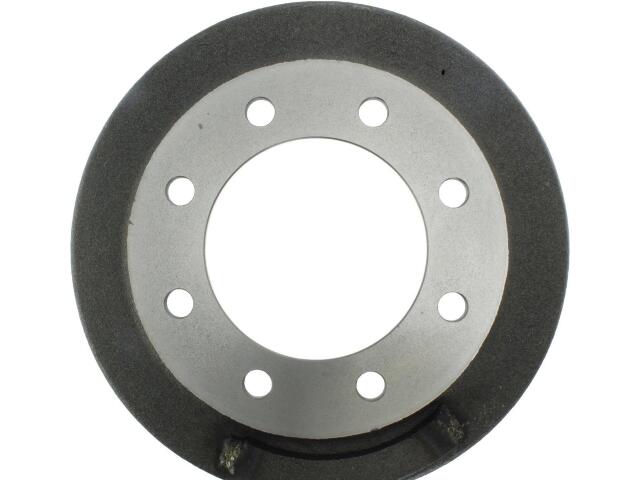

Drum
CENTRIC : 12399030

Bolt Circle Diameter (IN): 6.693
Bolt Circle Diameter (MM): 170.000
Bolt Hole Quantity: 8
Friction Surface Width (IN): 4.232
Friction Surface Width (MM): 107.500
Height (IN): 6.890
Height (MM): 175.000
Hub Hole / Register (IN): 5.000
Hub Hole / Register (MM): 127.000
Maximum Brake Diameter (Discard) (IN): 12.244
Maximum Brake Diameter (Discard) (MM): 311.000
Mounting Hole Diameter (IN): 0.622
Mounting Hole Diameter (MM): 15.800
Mounting Type: Floating
Nominal Drum Diameter (IN): 12.125
Nominal Drum Diameter (MM): 308.000
Outer Cooling Fins: No
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360.000

适用车型

FORD (2)

参考号

厂商	号码
AUTOZONE/DURALAST CONNECTORS	123.9903*
BREMBO NORTH AMERICA	A605*
CASTING NUMBERS	633041*

厂商	号码
CASTING NUMBERS	63304*
CASTING NUMBERS	63307*

厂商	号码
CASTING NUMBERS	6434*
QUALIS	2703*

OE号码

品牌	号码
OE	123.9903*

品牌	号码
OEM PART NUMBER	MF81A1126F*
