CENTRIC
12399023

第三方数据CENTRIC : 12399023

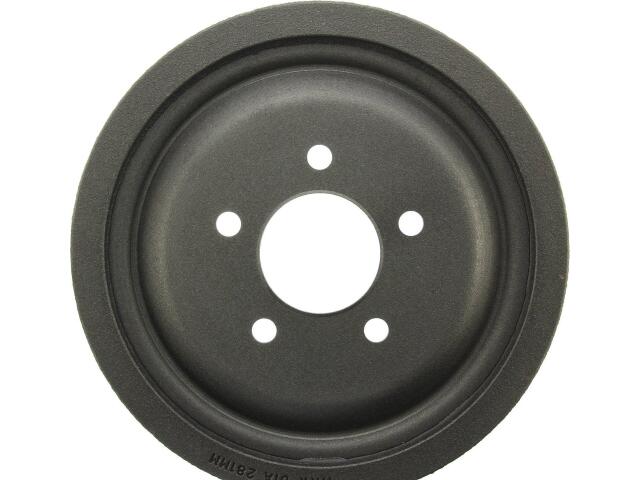

Drum
CENTRIC : 12399023

Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Bolt Hole Quantity: 5
Friction Surface Width (IN): 2.894
Friction Surface Width (MM): 73.500
Height (IN): 3.524
Height (MM): 89.500
Hub Hole / Register (IN): 2.807
Hub Hole / Register (MM): 71.300
Maximum Brake Diameter (Discard) (IN): 11.063
Maximum Brake Diameter (Discard) (MM): 281.000
Mounting Hole Diameter (IN): 0.567
Mounting Hole Diameter (MM): 14.400
Mounting Type: Floating
Nominal Drum Diameter (IN): 11.000
Nominal Drum Diameter (MM): 279.400
Outer Cooling Fins: No
Outside Diameter (IN): 12.677
Outside Diameter (MM): 322.000

适用车型

FORD (1)

CHEVROLET (1)

参考号

厂商	号码
AUTOZONE/DURALAST CONNECTORS	123.9902*
CASTING NUMBERS	20354*
CASTING NUMBERS	338*

厂商	号码
CASTING NUMBERS	BA20354*
CASTING NUMBERS	SP338*

厂商	号码
FREMAX BRAKE ROTORS & DRUMS	BD793*
QUALIS	2702*

OE号码

品牌	号码
OE	123.9902*

品牌	号码
OEM PART NUMBER	M5L551126A*

品牌	号码
OEM PART NUMBER	5L551126A*
