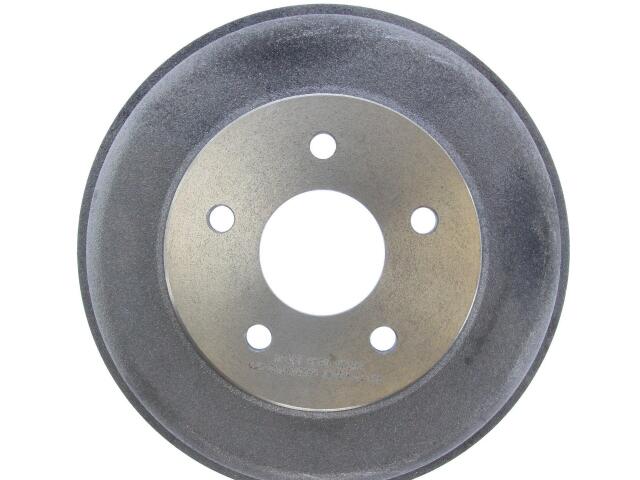

Drum
CENTRIC : 12365047

Bolt Circle Diameter (IN): 4.250
Bolt Circle Diameter (MM): 107.950
Bolt Hole Quantity: 5
Friction Surface Width (IN): 2.551
Friction Surface Width (MM): 64.800
Height (IN): 3.528
Height (MM): 89.611
Hub Hole / Register (IN): 2.492
Hub Hole / Register (MM): 63.300
Maximum Brake Diameter (Discard) (IN): 9.055
Maximum Brake Diameter (Discard) (MM): 230.000
Mounting Hole Diameter (IN): 0.512
Mounting Hole Diameter (MM): 13.000
Mounting Type: Floating
Nominal Drum Diameter (IN): 8.988
Nominal Drum Diameter (MM): 228.300
Outer Cooling Fins: No
Outside Diameter (IN): 10.992
Outside Diameter (MM): 279.200

适用车型

FORD (1)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	97804*

厂商	号码
RAYBESTOS UNBRANDED	97804*

OE号码

品牌	号码
OE	123.6504*
