CENTRIC
12344036

第三方数据CENTRIC : 12344036

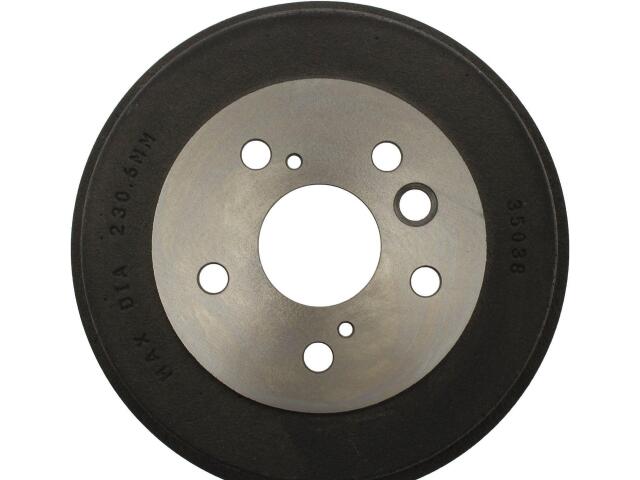

Drum
CENTRIC : 12344036

Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Bolt Hole Quantity: 5
Friction Surface Width (IN): 2.165
Friction Surface Width (MM): 55.000
Height (IN): 2.520
Height (MM): 64.000
Hub Hole / Register (IN): 2.441
Hub Hole / Register (MM): 62.000
Maximum Brake Diameter (Discard) (IN): 9.079
Maximum Brake Diameter (Discard) (MM): 230.600
Misc Holes: 3
Mounting Hole Diameter (IN): 0.571
Mounting Hole Diameter (MM): 14.500
Mounting Type: Floating
Nominal Drum Diameter (IN): 9.000
Nominal Drum Diameter (MM): 228.600
Outer Cooling Fins: No
Outside Diameter (IN): 10.906
Outside Diameter (MM): 277.000

适用车型

TOYOTA (1)

参考号

厂商	号码
AUTOZONE/RAYBESTOS	963*
AUTOZONE/RAYBESTOS	9634*

厂商	号码
PARTS PLUS DRUMS AND ROTORS	P963*
PARTS PLUS DRUMS AND ROTORS	PP963*

厂商	号码
RAYBESTOS UNBRANDED	963*
RAYBESTOS UNBRANDED	9634*

OE号码

品牌	号码
OE	123.4403*
