CENTRIC
12342025

第三方数据CENTRIC : 12342025

Drum

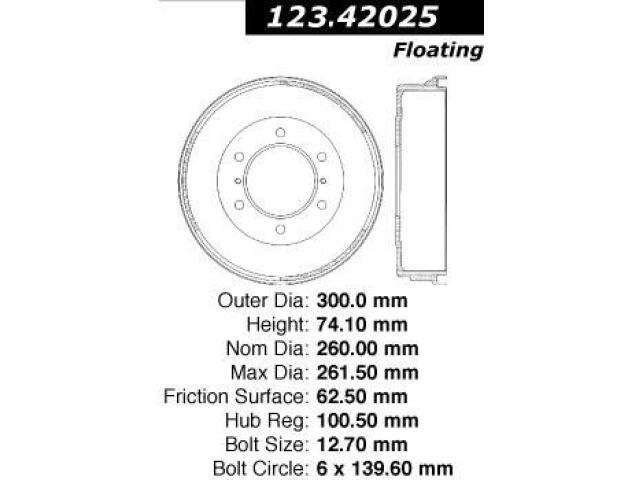

CENTRIC : 12342025

Bolt Circle Diameter (IN): 5.500
Bolt Circle Diameter (MM): 139.700
Bolt Hole Quantity: 6
Friction Surface Width (IN): 2.461
Friction Surface Width (MM): 62.500
Height (IN): 2.917
Height (MM): 74.100
Hub Hole / Register (IN): 3.957
Hub Hole / Register (MM): 100.500
Maximum Brake Diameter (Discard) (IN): 10.295
Maximum Brake Diameter (Discard) (MM): 261.500
Misc Holes: 2
Mounting Hole Diameter (IN): 0.500
Mounting Hole Diameter (MM): 12.700
Mounting Type: Floating
Nominal Drum Diameter (IN): 10.236
Nominal Drum Diameter (MM): 260.000
Outer Cooling Fins: No
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000

适用车型

NISSAN (4)

NP300 (3)

URVAN (3)

NP300 FRONTIER (2)

NV350 URVAN (1)

OE号码

品牌	号码
OE	123.4202*

品牌	号码
OE	1224201*

品牌	号码
OE	1234201*
