AUTO EXTRA
AX920184

第三方数据AUTO EXTRA : AX920184

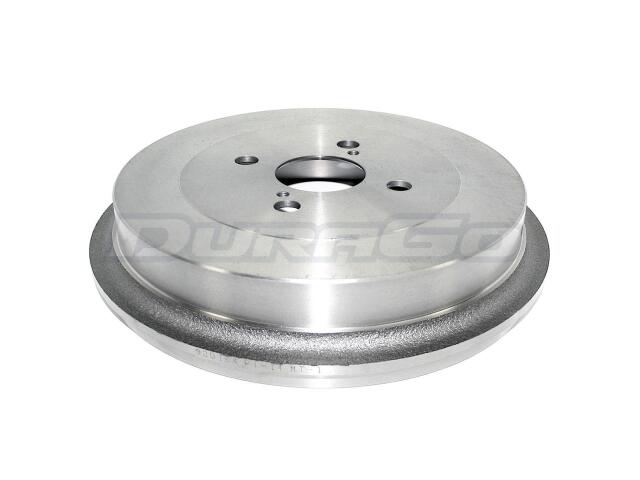

Drum
AUTO EXTRA : AX920184

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.7
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.75
Brake Surface Width (MM): 44.4
Center Hole Diameter (IN): 2.17
Center Hole Diameter (MM): 55
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.04
Maximum Brake Diameter (Discard) (MM): 229.6
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.5
Outer Cooling Fins: No
Outside Diameter (IN): 11.18
Outside Diameter (MM): 284
Overall Height (IN): 2.22
Overall Height (MM): 56.3
Rust Resistant Coating: No

适用车型

TOYOTA (1)

SCION (1)

OE号码

品牌	号码
OE	AX920184:*
