AUTO EXTRA
AX920110

第三方数据AUTO EXTRA : AX920110

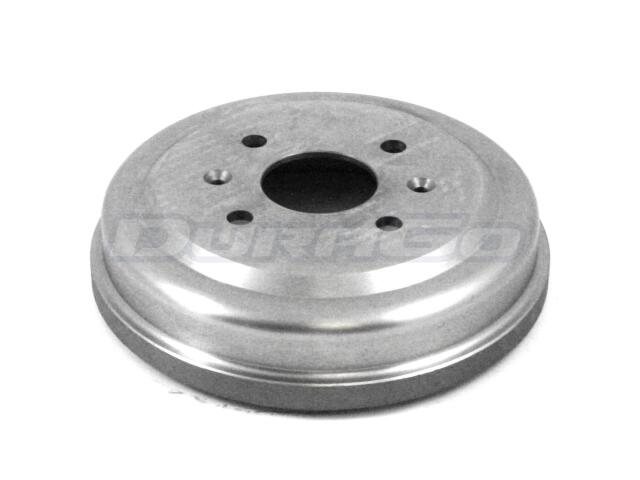

Drum
AUTO EXTRA : AX920110

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.5
Bolt Hole Diameter (MM): 12.6
Bolt Hole Quantity: 4
Brake Surface Width (IN): 1.53
Brake Surface Width (MM): 38.8
Center Hole Diameter (IN): 2.24
Center Hole Diameter (MM): 57
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 7.91
Maximum Brake Diameter (Discard) (MM): 201
Nominal Drum Diameter (IN): 7.87
Nominal Drum Diameter (MM): 200
Outer Cooling Fins: No
Outside Diameter (IN): 9.06
Outside Diameter (MM): 230
Overall Height (IN): 2.26
Overall Height (MM): 57.3
Rust Resistant Coating: No

适用车型

CHEVROLET (3)

SPARK (2)

AVEO (1)

AVEO5 (1)

PONTIAC (2)
