AUTO EXTRA
AX80109

第三方数据AUTO EXTRA : AX80109

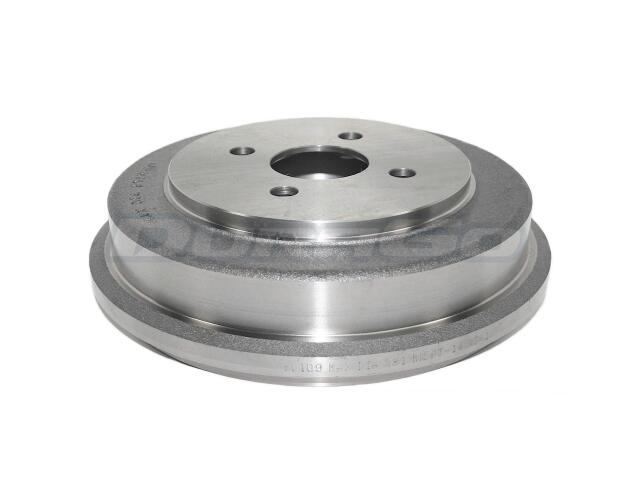

Drum
AUTO EXTRA : AX80109

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Diameter (IN): 0.57
Bolt Hole Diameter (MM): 14.4
Bolt Hole Quantity: 4
Brake Surface Width (IN): 2.15
Brake Surface Width (MM): 54.5
Center Hole Diameter (IN): 2.24
Center Hole Diameter (MM): 57
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.09
Maximum Brake Diameter (Discard) (MM): 231
Nominal Drum Diameter (IN): 9.06
Nominal Drum Diameter (MM): 230
Outer Cooling Fins: No
Outside Diameter (IN): 10.67
Outside Diameter (MM): 271
Overall Height (IN): 2.89
Overall Height (MM): 73.5
Rust Resistant Coating: No

适用车型

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	AX80109:*
