AUTO EXTRA
AX80105

第三方数据AUTO EXTRA : AX80105

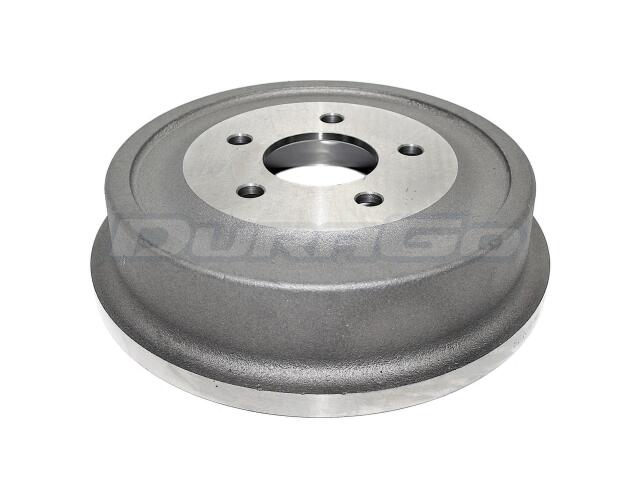

Drum
AUTO EXTRA : AX80105

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.53
Bolt Circle Diameter (MM): 115
Bolt Hole Diameter (IN): 0.58
Bolt Hole Diameter (MM): 14.8
Bolt Hole Quantity: 5
Brake Surface Width (IN): 2.17
Brake Surface Width (MM): 55
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 9.9
Maximum Brake Diameter (Discard) (MM): 251.5
Nominal Drum Diameter (IN): 9.84
Nominal Drum Diameter (MM): 250
Outer Cooling Fins: No
Outside Diameter (IN): 11.65
Outside Diameter (MM): 296
Overall Height (IN): 2.9
Overall Height (MM): 73.7
Rust Resistant Coating: No

适用车型

CHEVROLET (1)

PONTIAC (2)

SATURN (1)

OE号码

品牌	号码
OE	AX80105:*
