第三方数据AUTO EXTRA : AX80036

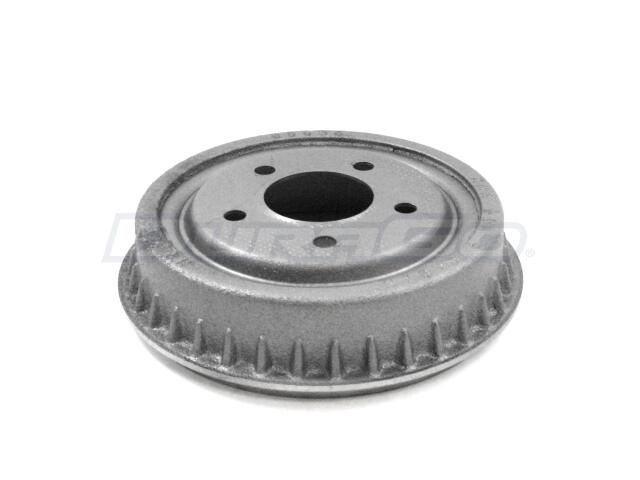

Drum
AUTO EXTRA : AX80036

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Bolt Hole Diameter (IN): 0.57
Bolt Hole Diameter (MM): 14.5
Bolt Hole Quantity: 5
Brake Surface Width (IN): 2.13
Brake Surface Width (MM): 54.2
Center Hole Diameter (IN): 2.81
Center Hole Diameter (MM): 71.3
Construction: Composite
Material: Cast Iron / Steel Top
Maximum Brake Diameter (Discard) (IN): 9.06
Maximum Brake Diameter (Discard) (MM): 230.1
Nominal Drum Diameter (IN): 9
Nominal Drum Diameter (MM): 228.6
Outer Cooling Fins: No
Outside Diameter (IN): 10.59
Outside Diameter (MM): 269
Overall Height (IN): 2.76
Overall Height (MM): 70
Rust Resistant Coating: No

适用车型

FORD (1)

MAZDA (3)

OE号码

品牌	号码
OE	AX80036:*
