AUTO EXTRA
AX35111

第三方数据AUTO EXTRA : AX35111

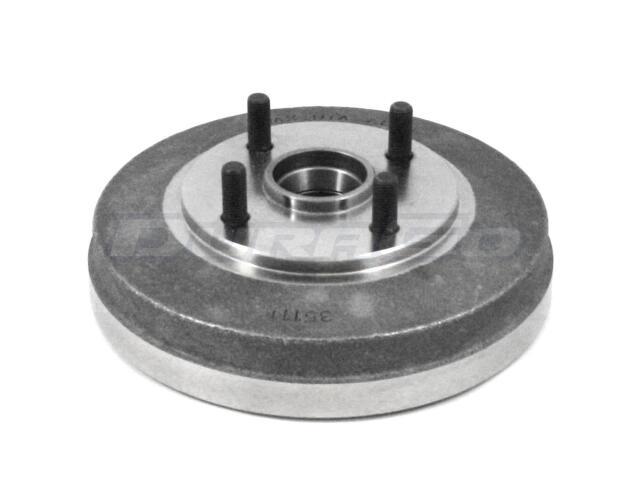

Drum
AUTO EXTRA : AX35111

Abs Tone Ring Included: Yes
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Bolt Hole Quantity: 4
Bolt Size (MM): M12 x 1.5
Brake Surface Width (IN): 1.35
Brake Surface Width (MM): 34.2
Center Hole Diameter (IN): 1.46
Center Hole Diameter (MM): 37
Construction: Full Cast
Material: Cast Iron
Maximum Brake Diameter (Discard) (IN): 7.93
Maximum Brake Diameter (Discard) (MM): 201.5
Nominal Drum Diameter (IN): 7.87
Nominal Drum Diameter (MM): 199.8
Outer Cooling Fins: No
Outside Diameter (IN): 9.07
Outside Diameter (MM): 230.5
Overall Height (IN): 2.67
Overall Height (MM): 67.8
Rust Resistant Coating: No

适用车型

KIA (1)

OE号码

品牌	号码
OE	AX35111:*
