ASTRA
18B601

第三方数据ASTRA : 18B601

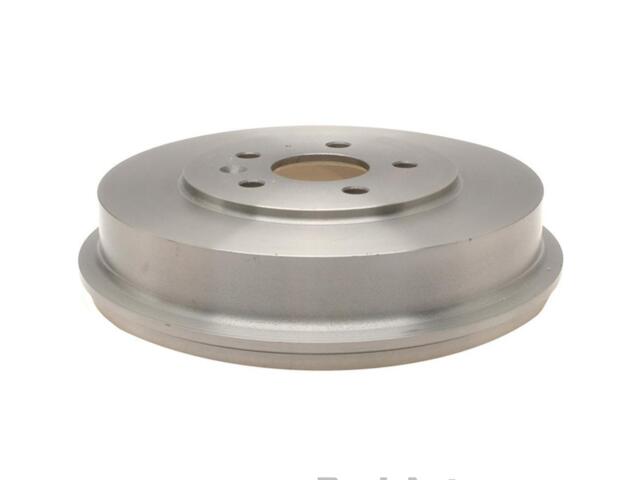

Drum
ASTRA : 18B601

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.13
Bolt Circle Diameter (MM): 105
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.36in
Center Bore Diameter (MM): 60mm
Depth (IN): 1.984
Depth (MM): 50.4
Discard Thickness (IN): 10.08
Discard Thickness (MM): 256
Height (IN): 3.3
Inside Diameter (IN): 10
Inside Diameter (MM): 254
Length (IN): 10.08
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 256.03
Mount Hole Diameter (IN): 0.577in
Mount Hole Diameter (MM): 14.656mm
Nominal Drum Diameter (IN): 10
Nominal Drum Diameter (MM): 254
Outer Cooling Fins: No
Outside Diameter (IN): 0.462
Outside Diameter (MM): 11.75
Stud/Lug Hole Diameter (IN): 0.557
Stud/Lug Hole Diameter (MM): 14.15
Weight (lb): 16.1
Width (IN): 12.1

适用车型

CHEVROLET (2)

OE号码

品牌	号码
OE	1929298*
