ASTRA
18B596

第三方数据ASTRA : 18B596

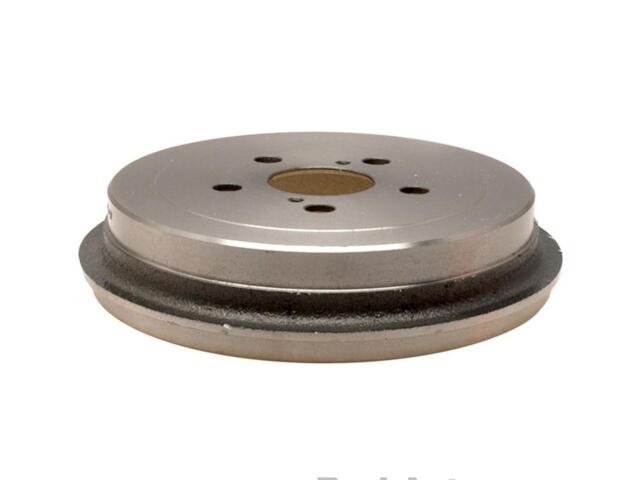

Drum
ASTRA : 18B596

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.17in
Center Bore Diameter (MM): 55mm
Depth (IN): 1.725
Depth (MM): 43.8
Discard Thickness (IN): 7.91
Discard Thickness (MM): 201
Height (IN): 3.1
Inside Diameter (IN): 7.872
Inside Diameter (MM): 199.95
Length (IN): 7.91
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 201
Mount Hole Diameter (IN): 0.573in
Mount Hole Diameter (MM): 14.554mm
Nominal Drum Diameter (IN): 7.9
Nominal Drum Diameter (MM): 200.7
Outer Cooling Fins: No
Outside Diameter (IN): 0.391
Outside Diameter (MM): 9.9
Stud/Lug Hole Diameter (IN): 0.573
Stud/Lug Hole Diameter (MM): 14.55
Weight (lb): 10.1
Width (IN): 10.6

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	1929297*
