ASTRA
18B594

第三方数据ASTRA : 18B594

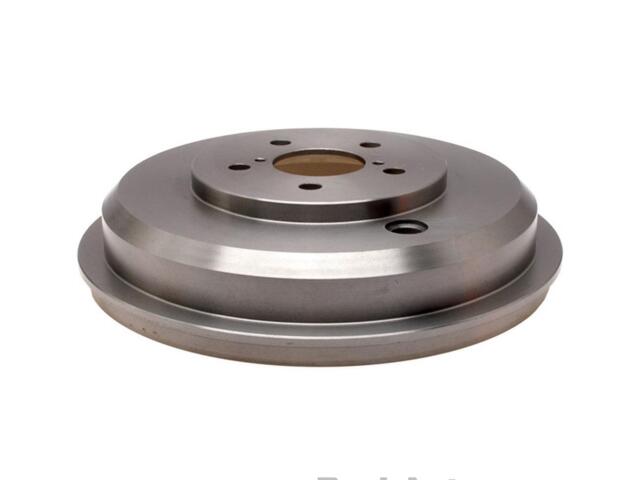

Drum
ASTRA : 18B594

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.28in
Center Bore Diameter (MM): 58mm
Depth (IN): 1.9
Depth (MM): 48.25
Discard Thickness (IN): 10.08
Discard Thickness (MM): 256
Height (IN): 4.2
Inside Diameter (IN): 10.002
Inside Diameter (MM): 254.05
Length (IN): 10.08
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 256
Mount Hole Diameter (IN): 0.511in
Mount Hole Diameter (MM): 12.979mm
Nominal Drum Diameter (IN): 10
Nominal Drum Diameter (MM): 254
Outer Cooling Fins: No
Outside Diameter (IN): 12.04
Outside Diameter (MM): 305.7
Stud/Lug Hole Diameter (IN): 0.511
Stud/Lug Hole Diameter (MM): 13
Weight (lb): 16.3
Width (IN): 13

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	1929297*
