ASTRA
18B589

第三方数据ASTRA : 18B589

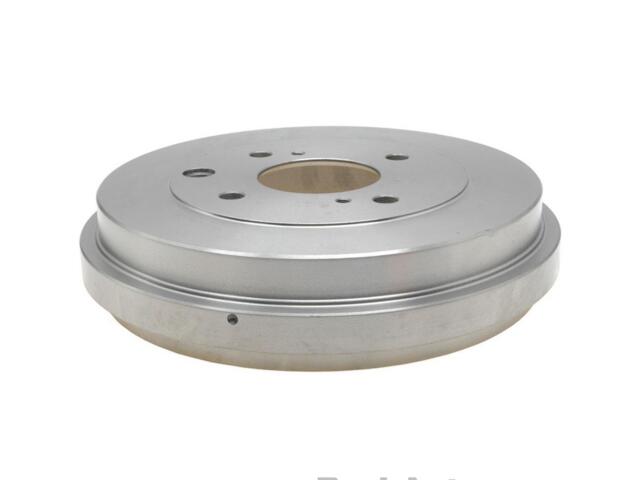

Drum
ASTRA : 18B589

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.68in
Center Bore Diameter (MM): 68mm
Depth (IN): 2.006
Depth (MM): 50.95
Discard Thickness (IN): 9.06
Discard Thickness (MM): 230
Height (IN): 2.8
Inside Diameter (IN): 9
Inside Diameter (MM): 228.6
Length (IN): 10.8
Material: Cast Iron
Mount Hole Diameter (IN): 0.515in
Mount Hole Diameter (MM): 13.081mm
Outer Cooling Fins: No
Outside Diameter (IN): 0.41
Outside Diameter (MM): 10.4
Stud/Lug Hole Diameter (IN): 0.501
Stud/Lug Hole Diameter (MM): 12.75
Weight (lb): 11.5
Width (IN): 10.8

适用车型

NISSAN (3)

CUBE (1)

VERSA (1)

SENTRA (2)

OE号码

品牌	号码
OE	1928753*
