ASTRA
18B586

第三方数据ASTRA : 18B586

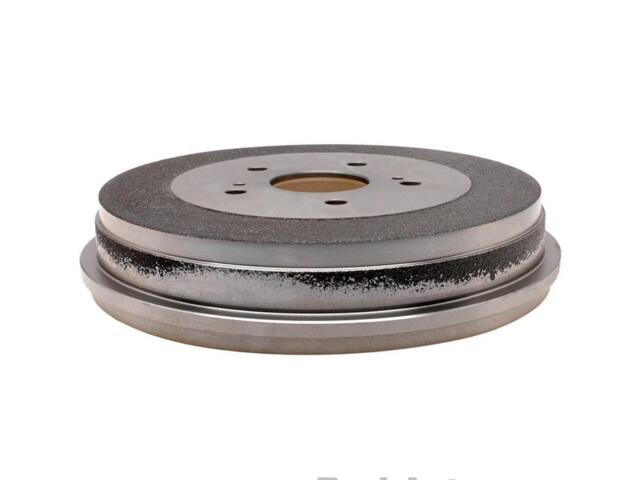

Drum
ASTRA : 18B586

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.44in
Center Bore Diameter (MM): 62mm
Depth (IN): 1.87
Depth (MM): 47.5
Discard Thickness (IN): 10.08
Discard Thickness (MM): 256
Height (IN): 2.8
Inside Diameter (IN): 10.005
Inside Diameter (MM): 254.15
Length (IN): 10.08
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 256
Mount Hole Diameter (IN): 0.515in
Mount Hole Diameter (MM): 13.081mm
Nominal Drum Diameter (IN): 10
Nominal Drum Diameter (MM): 254
Outer Cooling Fins: No
Outside Diameter (IN): 0.468
Outside Diameter (MM): 11.9
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.6
Weight (lb): 18.7
Width (IN): 12.3

适用车型

SUZUKI (1)

OE号码

品牌	号码
OE	1928753*
