ASTRA
18B585

第三方数据ASTRA : 18B585

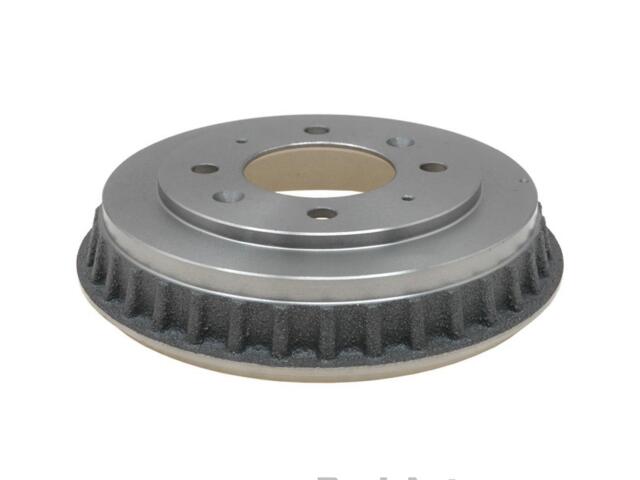

Drum
ASTRA : 18B585

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.99in
Center Bore Diameter (MM): 76mm
Center Hole Diameter (IN): 2.992
Center Hole Diameter (MM): 76
Depth (IN): 1.589
Depth (MM): 40.35
Discard Thickness (IN): 8.08
Discard Thickness (MM): 205.2
Height (IN): 2.8
Inside Diameter (IN): 7.997
Inside Diameter (MM): 203.1
Length (IN): 10.8
Material: Cast Iron
Mount Hole Diameter (IN): 0.493in
Mount Hole Diameter (MM): 12.522mm
Nominal Drum Diameter (IN): 8.1
Nominal Drum Diameter (MM): 205
Outer Cooling Fins: Yes
Outside Diameter (IN): 9.685
Outside Diameter (MM): 246
Overall Height (IN): 2.142
Overall Height (MM): 54.4
Stud/Lug Hole Diameter (IN): 0.51
Stud/Lug Hole Diameter (MM): 12.95
Weight (lb): 8.8
Width (IN): 10.8

适用车型

KIA (2)

OE号码

品牌	号码
OE	1928753*
