第三方数据ASTRA : 18B584

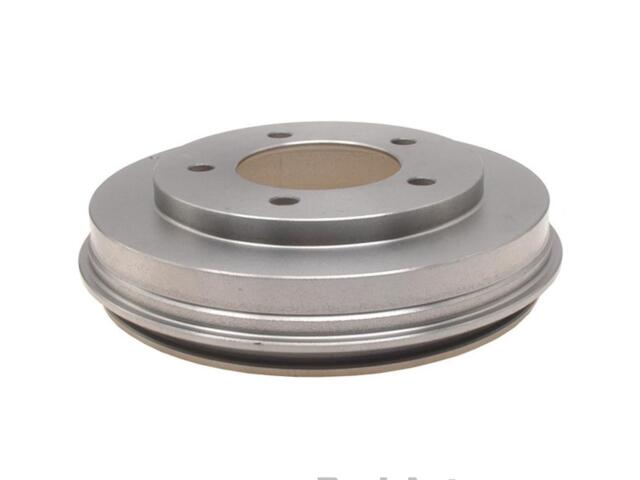

Drum
ASTRA : 18B584

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 3.15in
Center Bore Diameter (MM): 80mm
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Depth (IN): 1.631
Depth (MM): 41.45
Discard Thickness (IN): 8.07
Discard Thickness (MM): 205
Height (IN): 2.8
Inside Diameter (IN): 7.991
Inside Diameter (MM): 202.95
Length (IN): 10.8
Material: Cast Iron
Mount Hole Diameter (IN): 0.493in
Mount Hole Diameter (MM): 12.522mm
Nominal Drum Diameter (IN): 8.1
Nominal Drum Diameter (MM): 205
Outer Cooling Fins: No
Outside Diameter (IN): 9.449
Outside Diameter (MM): 240
Overall Height (IN): 2.339
Overall Height (MM): 59.4
Stud/Lug Hole Diameter (IN): 0.493
Stud/Lug Hole Diameter (MM): 12.5
Weight (lb): 8
Width (IN): 10.8

适用车型

MITSUBISHI (1)

LANCER (3)

2.0L L4 (11)

2.0L L4 Turbocharged (8)

2.4L L4 (9)

OE号码

品牌	号码
OE	1928753*
