ASTRA
18B578

第三方数据ASTRA : 18B578

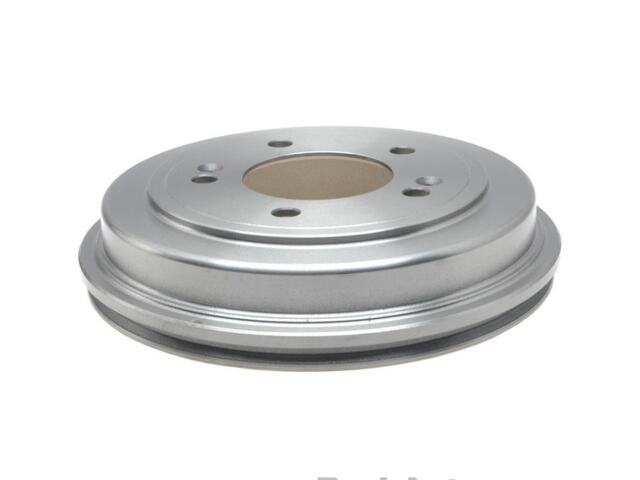

Drum
ASTRA : 18B578

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.99in
Center Bore Diameter (MM): 76mm
Depth (IN): 1.648
Depth (MM): 41.85
Discard Thickness (IN): 8.08
Discard Thickness (MM): 205.2
Height (IN): 3.2
Inside Diameter (IN): 7.998
Inside Diameter (MM): 203.15
Length (IN): 8.08
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 205.2
Mount Hole Diameter (IN): 0.491in
Mount Hole Diameter (MM): 12.471mm
Nominal Drum Diameter (IN): 8.1
Nominal Drum Diameter (MM): 205.2
Outer Cooling Fins: No
Outside Diameter (IN): 9.63
Outside Diameter (MM): 244.6
Stud/Lug Hole Diameter (IN): 0.491
Stud/Lug Hole Diameter (MM): 12.45
Weight (lb): 8.9
Width (IN): 6.8

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	1928624*
