ASTRA
18B577

第三方数据ASTRA : 18B577

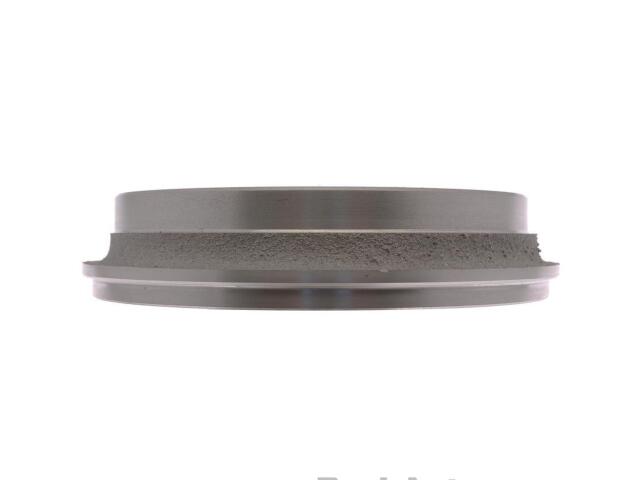

Drum
ASTRA : 18B577

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.17in
Center Bore Diameter (MM): 55mm
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 7.91
Discard Thickness (MM): 201
Height (IN): 3.2
Length (IN): 8.5
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 201.000
Mount Hole Diameter (IN): 0.507in
Mount Hole Diameter (MM): 12.878mm
Outer Cooling Fins: No
Outside Diameter (IN): 9.921
Outside Diameter (MM): 252
Overall Height (IN): 2.087
Overall Height (MM): 53
Weight (lb): 10
Width (IN): 6.8

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	1928624*
