ASTRA
18B574

第三方数据ASTRA : 18B574

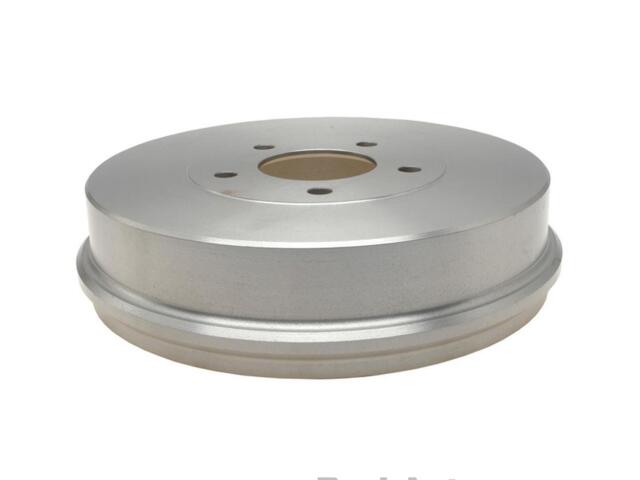

Drum
ASTRA : 18B574

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.83in
Center Bore Diameter (MM): 72mm
Depth (IN): 2.441
Depth (MM): 62
Discard Thickness (IN): 10.09
Discard Thickness (MM): 256.3
Height (IN): 3.3
Inside Diameter (IN): 10
Inside Diameter (MM): 254
Length (IN): 10.09
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 256.29
Mount Hole Diameter (IN): 0.546in
Mount Hole Diameter (MM): 13.868mm
Nominal Drum Diameter (IN): 10
Nominal Drum Diameter (MM): 254
Outer Cooling Fins: No
Outside Diameter (IN): 0.46
Outside Diameter (MM): 11.7
Stud/Lug Hole Diameter (IN): 0.526
Stud/Lug Hole Diameter (MM): 13.35
Weight (lb): 17.9
Width (IN): 12.1

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	1928630*
