ASTRA
18B571

第三方数据ASTRA : 18B571

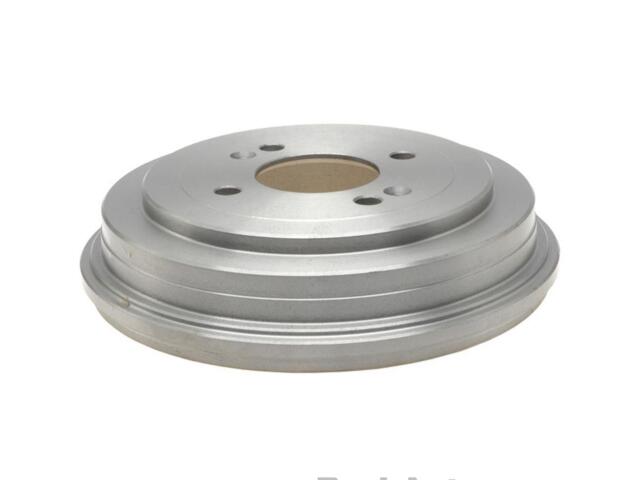

Drum
ASTRA : 18B571

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (MM): 100
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.46in
Center Bore Diameter (MM): 62.5mm
Depth (IN): 1.594
Depth (MM): 40.5
Discard Thickness (IN): 8.08
Discard Thickness (MM): 205.2
Height (IN): 2.8
Inside Diameter (IN): 7.992
Inside Diameter (MM): 203
Length (IN): 8.08
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 205.23
Mount Hole Diameter (IN): 0.507in
Mount Hole Diameter (MM): 12.878mm
Nominal Drum Diameter (IN): 7.99
Nominal Drum Diameter (MM): 202.9
Outer Cooling Fins: No
Outside Diameter (IN): 0.377
Outside Diameter (MM): 9.6
Stud/Lug Hole Diameter (IN): 0.487
Stud/Lug Hole Diameter (MM): 12.35
Weight (lb): 9
Width (IN): 10.8

适用车型

HYUNDAI (1)

KIA (2)

OE号码

品牌	号码
OE	1928630*
