ASTRA
18B427

第三方数据ASTRA : 18B427

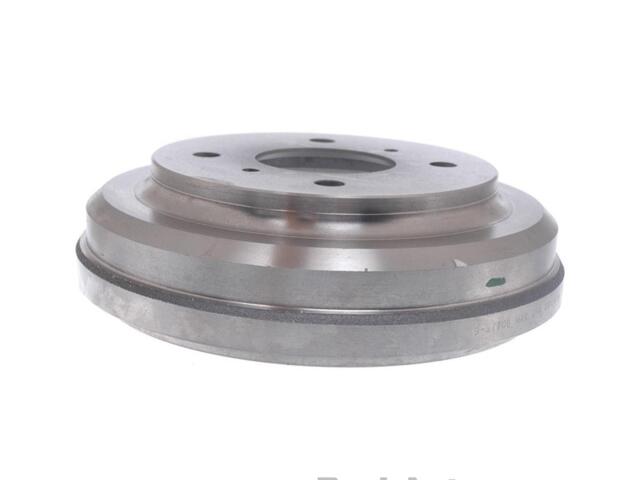

Drum
ASTRA : 18B427

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Brake Surface Finish: Turned
Center Bore Diameter (IN): 2.68in
Center Bore Diameter (MM): 68mm
Depth (IN): 1.67
Depth (MM): 42.4
Discard Thickness (IN): 8.05
Discard Thickness (MM): 204.5
Height (IN): 4.12
Length (IN): 8.05
Material: Cast Iron
Maximum Brake Diameter (Discard) (MM): 204.47
Mount Hole Diameter (IN): 0.515in
Mount Hole Diameter (MM): 13.081mm
Nominal Drum Diameter (IN): 0.317
Nominal Drum Diameter (MM): 8.05
Outer Cooling Fins: No
Outside Diameter (IN): 0.366
Outside Diameter (MM): 9.3
Stud/Lug Hole Diameter (IN): 0.495
Stud/Lug Hole Diameter (MM): 12.55
Weight (lb): 10.5
Width (IN): 11.12

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	1917172*
