STANDARD MOTOR PRODUCTS
CBS2226

第三方数据STANDARD MOTOR PRODUCTS : CBS2226

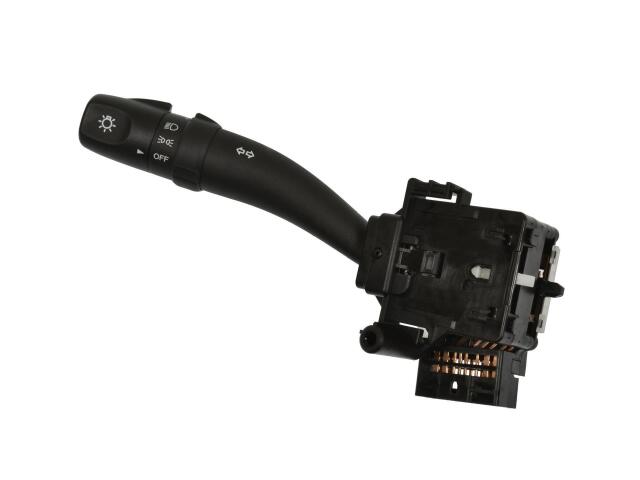

Dimmer Switch
STANDARD MOTOR PRODUCTS : CBS2226

Attachment Method: Direct, Snap Fit
Color/Finish: Black
Connector Gender: Female
Connector Shape: Rectangular
Contents: 1 Switch
Cruise Control Cancel Included: No
Cruise Control On/Off Operator Included: No
Cruise Control Resume Included: No
Cruise Control Set Included: No
Cruise Control Speed Adjustment Included: No
Displayed: Yes
Finish: Plastic
Fog Light Operator Included: No
Functions: Combination Switch
Indicator Markings Included: Yes
Latching High Beam Operator Includ: Yes
Main Light Operator Included: Yes
Momentary High Beam Flasher Included: Yes
New or Reman: New
Number Of Connector Cavities: 1
Rear Window Washer Spray Included: No
Rear Window Wiper Delay Control Included: No
Rear Window Wiper Speed Setting Included: No
Running Light Operator Included: No
Terminal Gender: Male
Terminal Quantity: 16
Terminal Type: Blade
Turn Signal Control Included: Yes
Turn Signal/Directional Indicator: Yes
Voltage: 12
Windshield Washer Spray Included: No
Windshield Wiper Delay Setting Included: No
Windshield Wiper Speed Setting Included: No

适用车型

KIA (1)

参考号

厂商	号码
AIRTEX ENG MGMT SYSTEMS	1S1143*
AUTOZONE INC	SW863*
AUTOZONE/DURALAST-WELLS	SW863*
BWD AUTOMOTIVE	S1642*

厂商	号码
BWD INTERMOTOR	S1642*
BWD P SERIES	S1642*
CARQUEST PREMIUM VEHICLE SOLUTIONS	SAE336*
CARQUEST/WELLS	53-5905*

厂商	号码
ECHLIN	DL762*
WELLS	SW863*
WVE	1S1143*

OE号码

品牌	号码
OE	CBS2226:*

品牌	号码
KIA	934102J00*
