STANDARD MOTOR PRODUCTS
CBS2057

第三方数据STANDARD MOTOR PRODUCTS : CBS2057

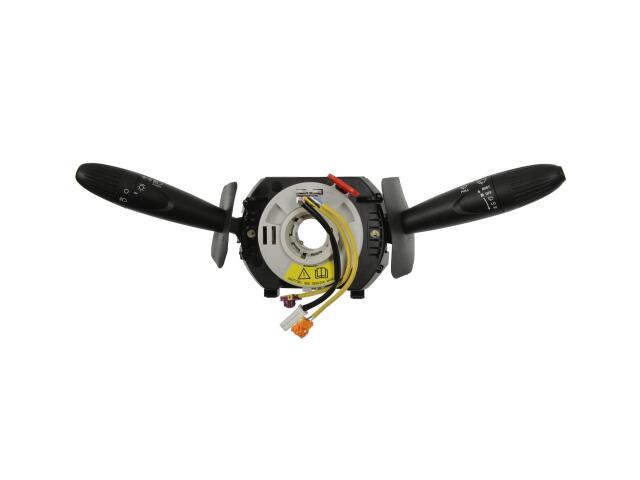

Dimmer Switch
STANDARD MOTOR PRODUCTS : CBS2057

Attachment Method: Bolt On
Color/Finish: Black, White
Connector Gender: Female; Male
Connector Quantity: 4
Connector Shape: Rectangular
Contents: 1 Switch
Cruise Control Cancel Included: No
Cruise Control On/Off Operator Included: No
Cruise Control Resume Included: No
Cruise Control Set Included: No
Cruise Control Speed Adjustment Included: No
Displayed: Yes
Fog Light Operator Included: No
Functions: Combination Switch
Hardware Included: No
Indicator Markings Included: Yes
Latching High Beam Operator Includ: Yes
Lighting Controls Included: Headlights; High Beams
Main Light Operator Included: Yes
Momentary High Beam Flasher Included: Yes
New or Reman: New
Number Of Connector Cavities: 6
Number Of Wiper Delay Settings: 1
Number Of Wiper Speed Settings: 3
Rear Window Washer Spray Included: No
Rear Window Wiper Delay Control Included: No
Rear Window Wiper Speed Setting Included: No
Running Light Operator Included: No
Terminal Gender: Male; Female
Terminal Quantity: 24
Terminal Type: Blade; Pin
Turn Signal Control Included: Turn Signal Control
Turn Signal/Directional Indicator: Yes
Voltage: 12
Windshield Washer Spray Included: Yes
Windshield Wiper Delay Setting Included: Yes
Windshield Wiper Speed Setting Included: Yes
Wiper Control Options Included: Windshield on/off; Mist
Wire Length (IN): 5.25
Wire Length (mm): 133.35
Wire Quantity: 6

适用车型

FIAT (1)

500 (3)

1.4L L4 (6)

1.4L L4 Turbocharged (8)

ELECTRIC (7)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1802-54612*

OE号码

品牌	号码
OE	1VL45JXWA*

品牌	号码
OE	1VL45JXWA*
