STANDARD MOTOR PRODUCTS
CBS1244

第三方数据STANDARD MOTOR PRODUCTS : CBS1244

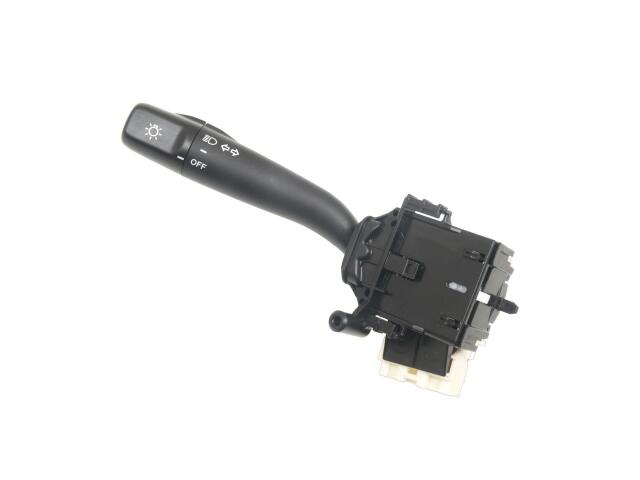

Dimmer Switch
STANDARD MOTOR PRODUCTS : CBS1244

Attachment Method: Bolt On
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Rectangular
Cruise Control Cancel Included: No
Cruise Control On/Off Operator Included: No
Cruise Control Resume Included: No
Cruise Control Set Included: No
Cruise Control Speed Adjustment Included: No
Displayed: Yes
Fog Light Operator Included: No
Indicator Markings Included: Yes
Latching High Beam Operator Includ: Yes
Main Light Operator Included: Yes
Momentary High Beam Flasher Included: Yes
New or Reman: New
Number Of Connector Cavities: 1
Rear Window Washer Spray Included: No
Rear Window Wiper Delay Control Included: No
Rear Window Wiper Speed Setting Included: No
Running Light Operator Included: No
Terminal Gender: Male
Terminal Quantity: 16
Terminal Type: Blade
Turn Signal Control Included: Yes
Turn Signal/Directional Indicator: Yes
Voltage: 12
Windshield Washer Spray Included: No
Windshield Wiper Delay Setting Included: No
Windshield Wiper Speed Setting Included: No

适用车型

TOYOTA (2)

SCION (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1802-30949*

OE号码

品牌	号码
OE	CBS1244:*

品牌	号码
OE	841402067*
