STANDARD MOTOR PRODUCTS
CBS1206

第三方数据STANDARD MOTOR PRODUCTS : CBS1206

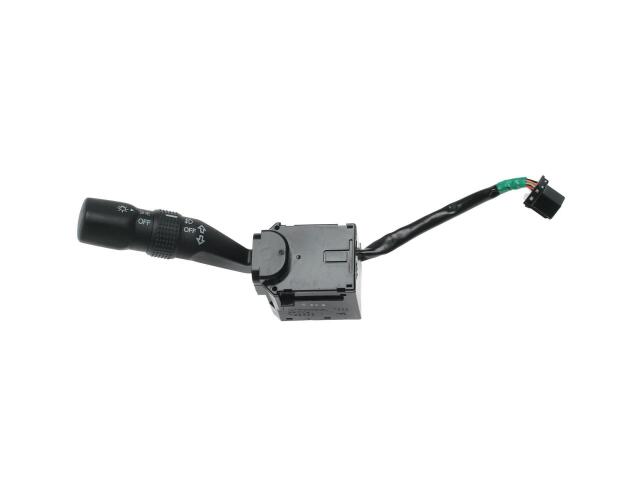

Dimmer Switch
STANDARD MOTOR PRODUCTS : CBS1206

Attachment Method: Bolt On
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangular
Contents: Switch
Cruise Control Cancel Included: No
Cruise Control On/Off Operator Included: No
Cruise Control Resume Included: No
Cruise Control Set Included: No
Cruise Control Speed Adjustment Included: No
Displayed: Yes
Fog Light Operator Included: Yes
Functions: Combination Switch
Indicator Markings Included: Yes
Latching High Beam Operator Includ: Yes
Main Light Operator Included: Yes
Momentary High Beam Flasher Included: Yes
New or Reman: New
Number Of Connector Cavities: 1
Rear Window Washer Spray Included: No
Rear Window Wiper Delay Control Included: No
Rear Window Wiper Speed Setting Included: No
Running Light Operator Included: No
Terminal Gender: Female
Terminal Quantity: 10
Terminal Type: Pin
Turn Signal Control Included: Yes
Turn Signal/Directional Indicator: Yes
Voltage: 12
Windshield Washer Spray Included: No
Windshield Wiper Delay Setting Included: No
Windshield Wiper Speed Setting Included: No

适用车型

ACURA (1)

OE号码

品牌	号码
OE	CBS1206:*

品牌	号码
OE	CBS-120*

品牌	号码
ACURA (SEE HONDA)	35255SEPA0*
