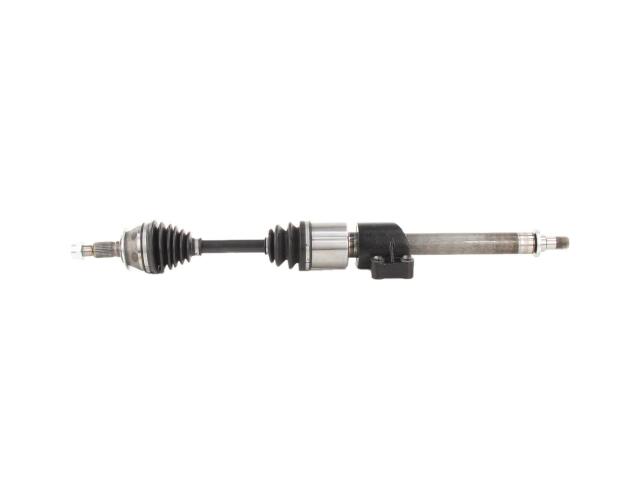

CV Intermediate Shaft
FVP : GM8450

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): 0.85
Axle Nut Height (MM): 21.5
Axle Nut Hex Size (IN): 1.42
Axle Nut Hex Size (MM): 36
Axle Nut Included: Yes
Axle Nut Length (IN): 1.64
Axle Nut Length (MM): 41.57
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M24*1.5
Boot Material: Neoprene
Inboard Joint Type: Male
Inboard Shaft Connection Style: Spline
Number Of Inboard Splines: 34
Number of Outboard Splines: 30
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (IN): 36.81
Overall Compressed Length (MM): 935

适用车型

CHEVROLET (1)
