TRAKMOTIVE
SN8021

第三方数据TRAKMOTIVE : SN8021

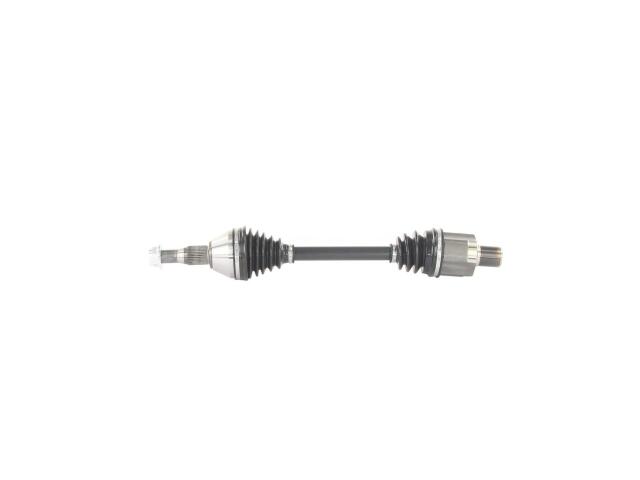

CV Axle
TRAKMOTIVE : SN8021

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): .86
Axle Nut Height (MM): 22
Axle Nut Hex Size (IN): 1.29
Axle Nut Hex Size (MM): 32.8
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37.9
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M27X2
Boot Material: CR
Inboard Joint Type: Female
Inboard Shaft Connection Style: Female
Number Of Inboard Splines: 34
Number of Outboard Splines: 33
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 23.94
Overall Compressed Length (MM): 608

适用车型

SATURN (1)

OE号码

品牌	号码
OE	SN-802*
