MZ8176

第三方数据TRAKMOTIVE : MZ8176

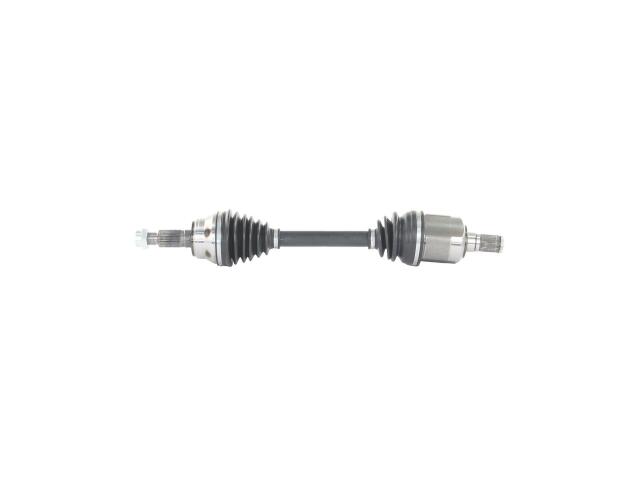

CV Axle
TRAKMOTIVE : MZ8176

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): 1.11
Axle Nut Height (MM): 28
Axle Nut Hex Size (IN): 1.42
Axle Nut Hex Size (MM): 36
Axle Nut Included: Yes
Axle Nut Length (IN): 1.625
Axle Nut Length (MM): 41.5
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M24x1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 31
Number of Outboard Splines: 31
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (IN): 24.29
Overall Compressed Length (MM): 617

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	MZ-817*
