TRAKMOTIVE
MZ8175

第三方数据TRAKMOTIVE : MZ8175

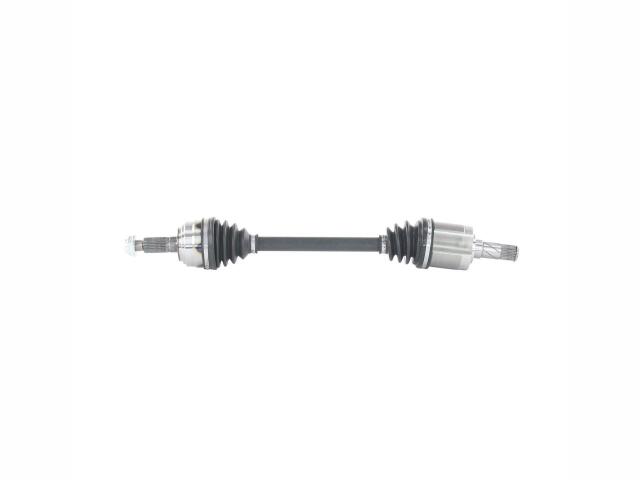

CV Axle
TRAKMOTIVE : MZ8175

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): .75
Axle Nut Height (MM): 18.9
Axle Nut Hex Size (IN): 1.25
Axle Nut Hex Size (MM): 31.8
Axle Nut Included: Yes
Axle Nut Length (IN): 1.33
Axle Nut Length (MM): 34.4
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M22X1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 28
Number of Outboard Splines: 28
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 26.81
Overall Compressed Length (MM): 681

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	MZ-817*
