TRAKMOTIVE
MZ8167

第三方数据TRAKMOTIVE : MZ8167

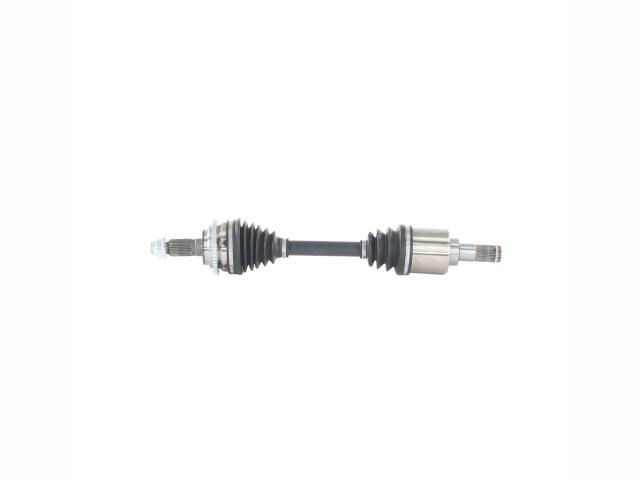

CV Axle
TRAKMOTIVE : MZ8167

ABS Ring Tooth Count: 44
ABS Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (IN): 1
Axle Nut Height (MM): 23
Axle Nut Hex Size (IN): 1.4
Axle Nut Hex Size (MM): 35.6
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37.53
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M24x1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 30
Number of Outboard Splines: 31
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 24.07
Overall Compressed Length (MM): 611.5

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	MZ-816*
