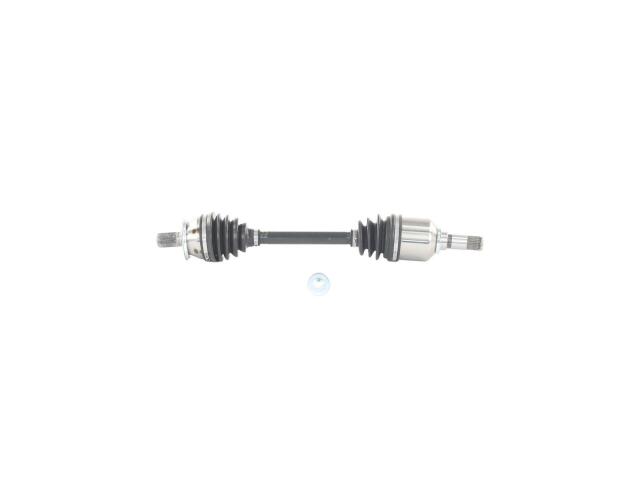

CV Axle
TRAKMOTIVE : MZ8142

Abs Tone Ring Included: No
Axle Bolt Hex Size (MM): 12.8
Axle Bolt Length (MM): 75
Axle Bolt Thread Size: M10x1.5
Axle Nut Included: No
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 26
Number Of Outboard Shaft Bolts: 1
Number of Bolt Holes: 1
Number of Outboard Splines: 36
Outboard Joint Type: Audi Style Spline Bolt
Outboard Shaft Connection Style: Audi Style Spline Bolt
Overall Compressed Length (IN): 22.68
Overall Compressed Length (MM): 576

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	MZ-814*
