第三方数据TRAKMOTIVE : MZ8134

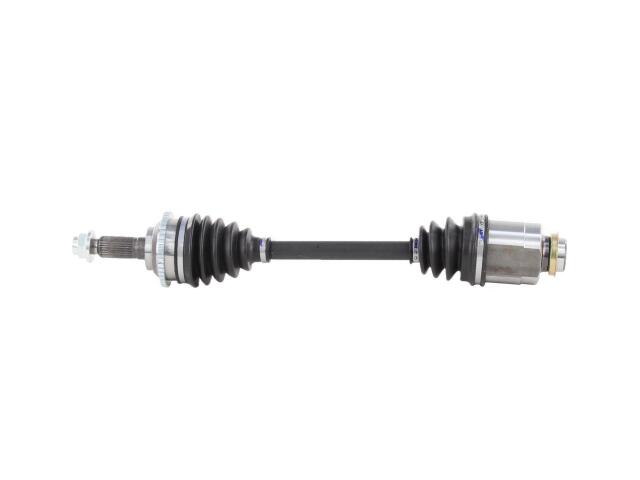

CV Axle
TRAKMOTIVE : MZ8134

ABS Ring Tooth Count: 44
ABS Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (IN): 1
Axle Nut Height (MM): 24
Axle Nut Hex Size (IN): 1.25
Axle Nut Hex Size (MM): 32
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22X1.5
Boot Material: CR
Inboard Joint Type: Female
Inboard Shaft Connection Style: Female
Number Of Inboard Splines: 28-2T
Number of Outboard Splines: 28
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 23.62
Overall Compressed Length (MM): 600

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	MZ-813*
