TRAKMOTIVE
GM8045

第三方数据TRAKMOTIVE : GM8045

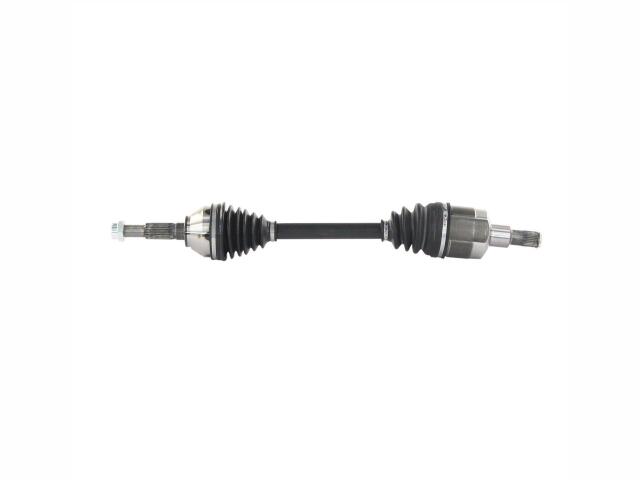

CV Axle
TRAKMOTIVE : GM8045

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): .86
Axle Nut Height (MM): 22
Axle Nut Hex Size (IN): 1.29
Axle Nut Hex Size (MM): 32.8
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37.9
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M27X2
Boot Material: CR
Inboard Joint Type: Female
Inboard Shaft Connection Style: Female
Number Of Inboard Splines: 34
Number of Outboard Splines: 33
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 22.05
Overall Compressed Length (MM): 560

适用车型

BUICK (6)

CENTURY (1)

ALLURE (2)

LACROSSE (2)

LESABRE (1)

LUCERNE (1)

PARK AVENUE (1)

CHEVROLET (3)

IMPALA (5)

MONTE CARLO (5)

VENTURE (1)

PONTIAC (3)

OE号码

品牌	号码
OE	GM-804*
