TRAKMOTIVE
FD8244

第三方数据TRAKMOTIVE : FD8244

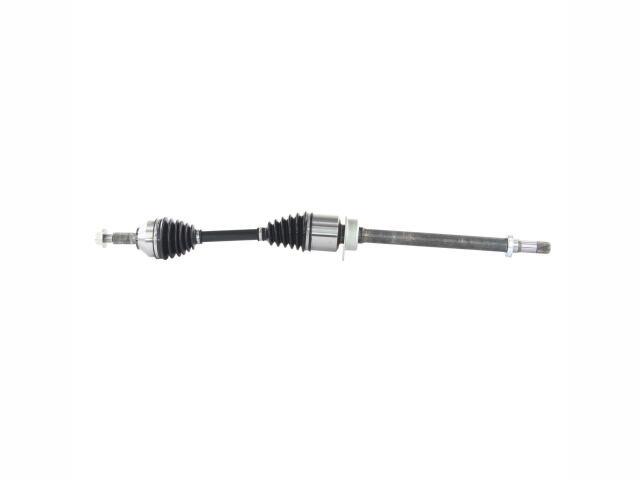

CV Axle
TRAKMOTIVE : FD8244

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): .57
Axle Nut Height (MM): 14.5
Axle Nut Hex Size (IN): 1.25
Axle Nut Hex Size (MM): 32
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22X1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 27
Number of Outboard Splines: 38
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 41.57
Overall Compressed Length (MM): 1056

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	FD-824*
