FD8191

第三方数据TRAKMOTIVE : FD8191

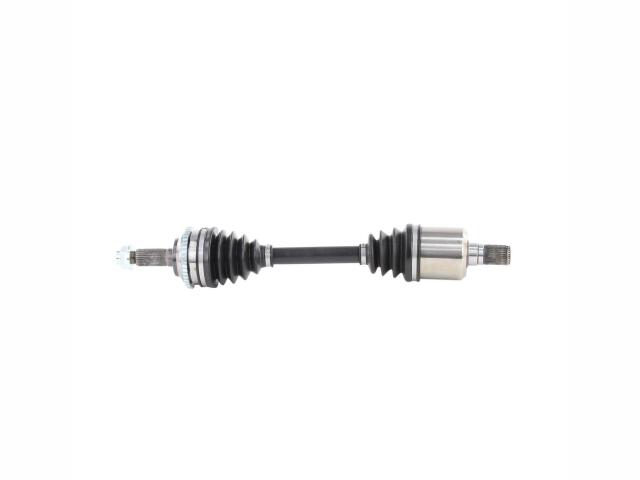

CV Axle
TRAKMOTIVE : FD8191

ABS Ring Tooth Count: 44
ABS Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (IN): 1
Axle Nut Height (MM): 24
Axle Nut Hex Size (IN): 1.25
Axle Nut Hex Size (MM): 32
Axle Nut Included: Yes
Axle Nut Length (IN): 1.5
Axle Nut Length (MM): 37
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22X1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 31
Number of Outboard Splines: 28
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (IN): 22.8
Overall Compressed Length (MM): 579

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	FD-819*
