FD8143

第三方数据TRAKMOTIVE : FD8143

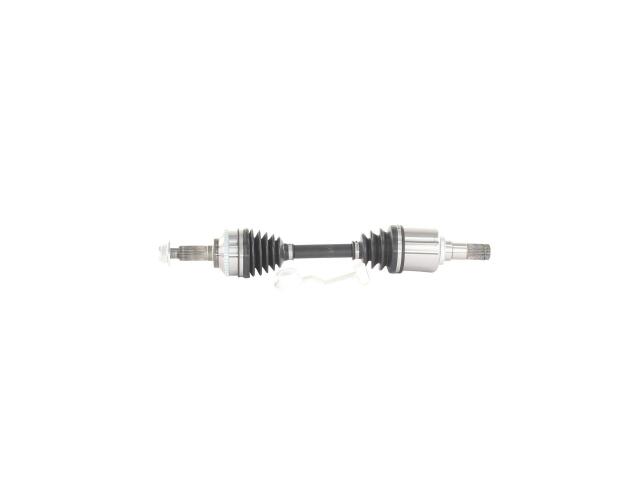

CV Axle
TRAKMOTIVE : FD8143

ABS Ring Tooth Count: 44
ABS Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (IN): .83
Axle Nut Height (MM): 21.2
Axle Nut Hex Size (IN): 1.25
Axle Nut Hex Size (MM): 31.8
Axle Nut Included: Yes
Axle Nut Length (IN): 1.33
Axle Nut Length (MM): 34.4
Axle Nut Locking Type: Self-Lock
Axle Nut Thread Size: M22X1.5
Boot Material: CR
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 30
Number of Outboard Splines: 28
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 22.64
Overall Compressed Length (MM): 575

适用车型

FORD (1)

MAZDA (1)

OE号码

品牌	号码
OE	FD-814*
