FVP
TO8342

第三方数据FVP : TO8342

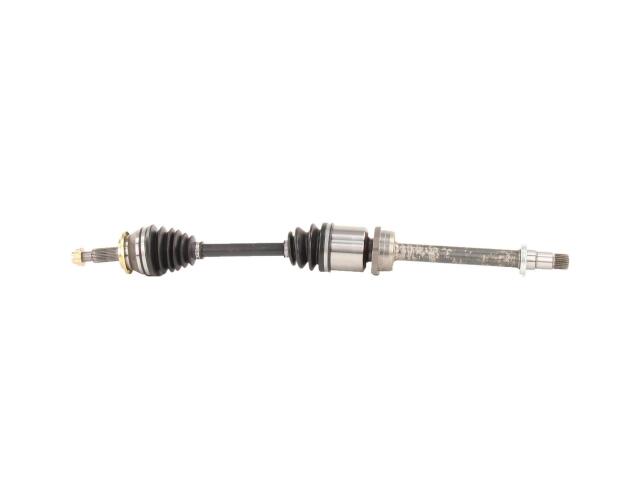

CV Axle
FVP : TO8342

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): 6/7
Axle Nut Height (MM): 21.5
Axle Nut Hex Size (IN): 1 1/6
Axle Nut Hex Size (MM): 30
Axle Nut Included: Yes
Axle Nut Length (IN): 1 1/3
Axle Nut Length (MM): 34.6
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22*1.5
Boot Material: Neoprene
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
Number Of Inboard Splines: 24
Number of Outboard Splines: 30
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (IN): 37.5
Overall Compressed Length (MM): 952.5

适用车型

SCION (1)

OE号码

品牌	号码
OE	TO-834*
