FVP
CH8320

第三方数据FVP : CH8320

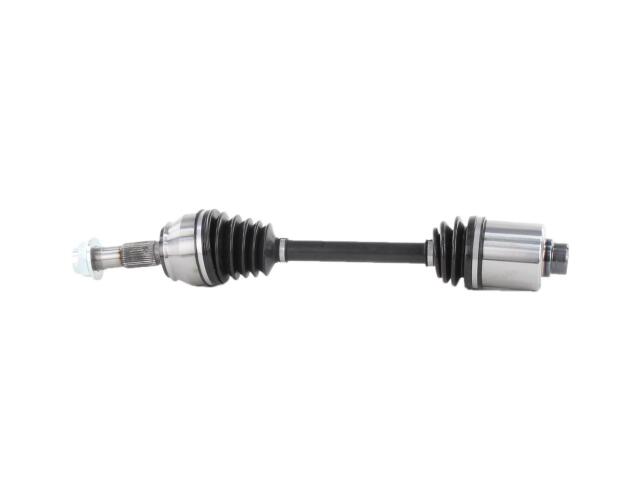

CV Axle
FVP : CH8320

Abs Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (IN): 1.22
Axle Nut Height (MM): 31.1
Axle Nut Hex Size (IN): 1.8
Axle Nut Hex Size (MM): 45.7
Axle Nut Included: Yes
Axle Nut Length (IN): 2.08
Axle Nut Length (MM): 52.77
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M33*1.5
Inboard Joint Type: Male
Inboard Shaft Connection Style: Spline
Number Of Inboard Splines: 28
Number of Outboard Splines: 35
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (IN): 26.04
Overall Compressed Length (MM): 661.5

适用车型

RAM (3)

PROMASTER 1500 (1)

PROMASTER 2500 (1)

PROMASTER 3500 (1)

OE号码

品牌	号码
OE	CH-832*
